PAG的渲染树

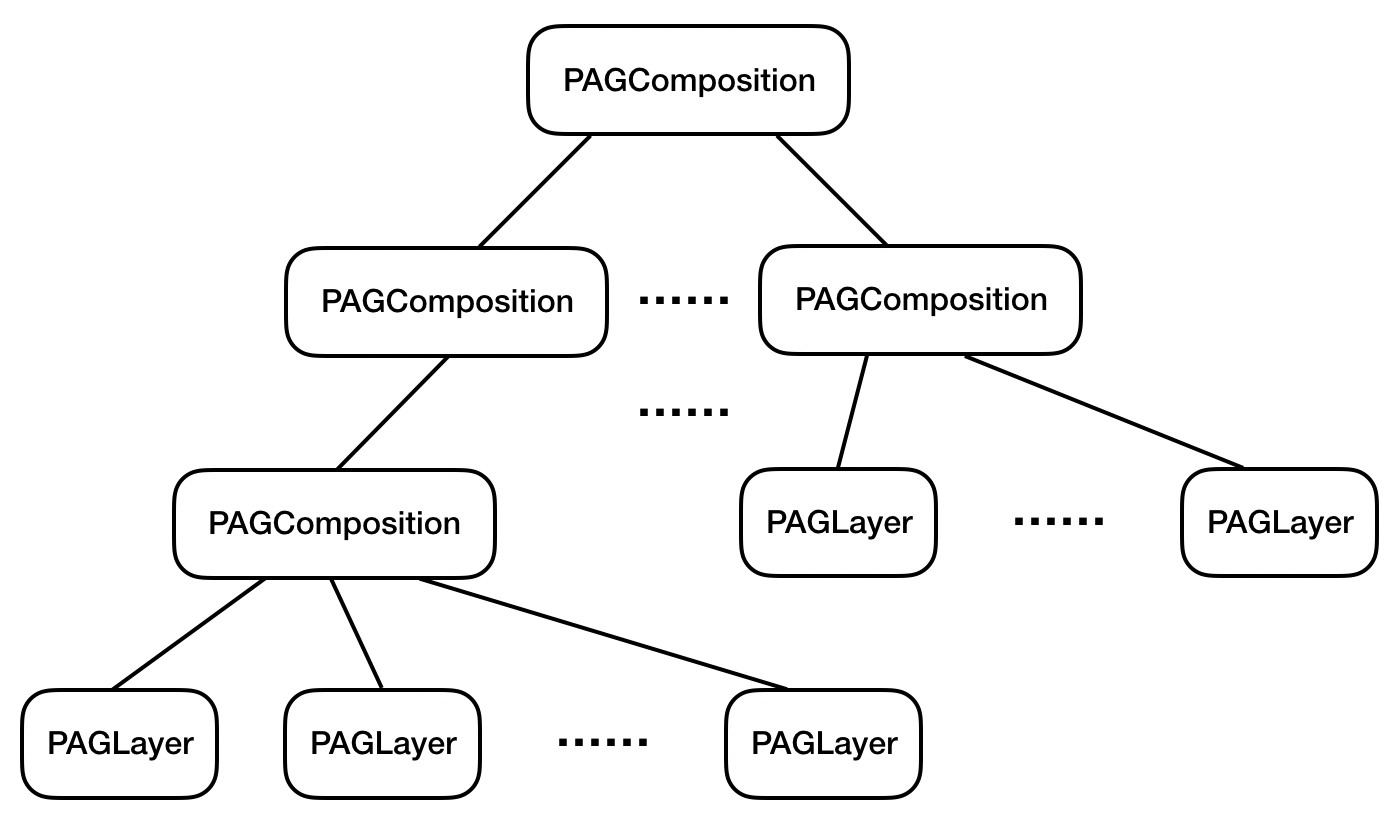

在3.0版本的PAG提供了渲染树的组装功能,让PAG素材可以成为一个大模板的一部分。整个渲染树由PAGComposition和PAGLayer组建而成,对于外部来说PAGComposition作为渲染树的分支节点,PAGLayer作为渲染树的叶子结点。一个PAG渲染树的样式大致如下:
PAGLayer
PAGLayer是渲染节点的基类,pag提供对PAGLayer的startTime进行控制。
//iOS
@interface PAGLayer : NSObject
……
- (void)setStartTime:(int64_t)time;
……
@end
//Android
public class PAGLayer {
public native void setStartTime(long time);
}
由于Layer可以进行组装,这导致了外部统一控制Layer替换内容的难度剧增。因此除了属性的控制外,根据Layer类型不同 ,对PAGTextLayer和PAGImageLayer也提供了直接替换显示内容的接口。
//iOS
@interface PAGTextLayer : PAGLayer
……
- (void)setFillColor:(UIColor*)color;
- (void)setFont:(PAGFont*)font;
- (void)setFontSize:(CGFloat)size;
- (void)setStrokeColor:(UIColor*)color;
- (void)setText:(NSString*)text;
……
@end
@interface PAGImageLayer : PAGLayer
……
- (void)replaceImage:(PAGImage*)image;
……
@end
//Android
public class PAGTextLayer extends PAGLayer {
public native void setFillColor(int color);
public void setFont(PAGFont font);
public native void setFontSize(float fontSize);
public native void setStrokeColor(int color);
public native void setText(String text);
}
public class PAGImageLayer extends PAGLayer {
public void replaceImage(PAGImage image);
}
PAGComposition
PAGComposition继承自PAGLayer,拥有Layer的所有对外接口。作为渲染树的容器,一个空的PAGComposition容器可以快速的通过Make函数构造。
//iOS
@interface PAGComposition : PAGLayer
+ (PAGComposition*)Make:(CGSize)size;
……
@end
//Android
public class PAGComposition extends PAGLayer {
public static native PAGComposition Make(int width, int height);
}
一个空的PAGComposition是不会也不必被渲染,因此libpag提供了接口对Composition的包含的内容进行修改。
//iOS
@interface PAGComposition : PAGLayer
……
- (void)setLayerIndex:(NSInteger)index layer:(PAGLayer*)child;
- (BOOL)addLayer:(PAGLayer*)pagLayer;
- (BOOL)addLayer:(PAGLayer*)pagLayer atIndex:(int)index;
- (BOOL)contains:(PAGLayer*)pagLayer;
- (PAGLayer*)removeLayer:(PAGLayer*)pagLayer;
- (PAGLayer*)removeLayerAt:(int)index;
- (void)removeAllLayers;
- (void)swapLayer:(PAGLayer*)pagLayer1 withLayer:(PAGLayer*)pagLayer2;
- (void)swapLayerAt:(int)index1 withIndex:(int)index2;
……
@end
//Android
public class PAGComposition extends PAGLayer {
public native void setLayerIndex(PAGLayer layer, int index);
public native void addLayer(PAGLayer pagLayer);
public native void addLayerAt(PAGLayer pagLayer, int index);
public native boolean contains(PAGLayer pagLayer);
public native PAGLayer removeLayer(PAGLayer pagLayer);
public native PAGLayer removeLayerAt(int index);
public native void removeAllLayers();
public native void swapLayer(PAGLayer pagLayer1, PAGLayer pagLayer2);
public native void swapLayerAt(int index1, int index2);
}
addLayer时,PAGLayer会自动从其父节点中移除并添加进当前PAGComposition。同时addLayer会有以下几种情况会添加失败:
//PAGLayer为空
1)pagLayer == nullptr
//PAGComposition添加自己
2)pagLayer == this
//循环添加
3)pagLayer->layerType() == LayerType::PreCompose && pagLayer->Contains(this) == true
removeLayer和swapLayer都需要保证输入的layer都在composition之中,否则也会失败。
PAGComposition无法被主动设置duration和frameRate。具体情况如下:
当PAGComposition从PAGFile中获取,PAGComposition的duration和frameRate由设计师在AE中决定;
当PAGComposition是Make出来的,PAGComposition会根据添加的Layer变化自己的duration和frameRate。
具体为:
for layer in PAGComposition->layers
PAGComposition->duration = MAX(layer->startTime + layer->duration, PAGComposition->duration)
PAGComposition->frameRate = MAX(layer->frameRate, PAGComposition->frameRate)
PAGFile
与此同时,PAGFile作为素材文件在内存中的实例,不再只存储文件数据,更是一个PAG中的渲染节点。3.0中PAGFile继承自PAGCompostion,可以直接被添加进其他的PAGComposition中。除了PAGComposition中的对应接口,PAGFile新增了copyOriginal方法。
//iOS
@interface PAGFile : PAGComposition
……
- (PAGFile*)copyOriginal;
……
@end
//Android
public class PAGFile extends PAGComposition {
}
copyOriginal这个方法是用于直接基于原始素材再生成一份同样的渲染树。
这里有一点需要注意,当前对于PAGFile所做的一切修改都不会被copy到返回值中,而后续对于PAGFile的修改也不会影响到copy出的数据。
渲染树的范例工程:
渲染树的范例工程已经整合到我们的标准范例工程中。
